3.3V fixed output, positive linear voltage regulator with 800mA output current capability. Features 1% accuracy and a low dropout voltage of 1.1V. Operates from a 3.8V to 15V input voltage range. Packaged in a TO-263 (DDPAK) surface-mount case, this RoHS compliant component offers a maximum operating temperature of 125°C.
PackageTO-263
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117F-3.3KTTT technical specifications.
General
Accuracy
1%
Package/Case
TO-263
Dropout Voltage
1.1V
Height
4.44mm
Input Bias Current
4mA
Lead Free
Lead Free
Length
10.18mm
Min Current Limit
800mA
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
800mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
8.41mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117F-3.3KTTT Datasheet
Download the complete datasheet for Texas Instruments REG1117F-3.3KTTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

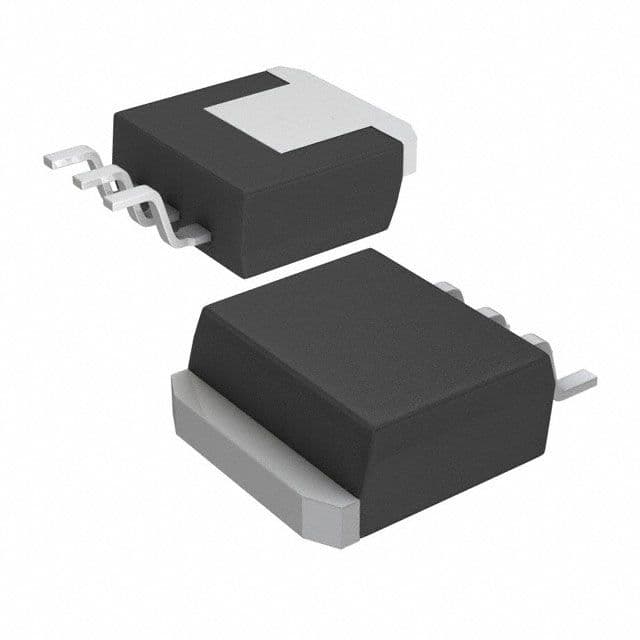

Product Images
