3.3V fixed output, positive polarity linear voltage regulator (LDO) with 800mA maximum output current. Features 1% accuracy and a 1.1V dropout voltage. Operates with a maximum input voltage of 15V and a minimum input voltage of 3.8V. Packaged in a TO-263-4 case, this lead-free and RoHS compliant component offers a wide operating temperature range from 0°C to 125°C.
PackageTO-263-4
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117F33KTTTG3 technical specifications.
General
Accuracy
1%
Package/Case
TO-263-4
Dropout Voltage
1.1V
Input Bias Current
4mA
Lead Free
Lead Free
Min Current Limit
800mA
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
800mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
4mA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117F33KTTTG3 Datasheet
Download the complete datasheet for Texas Instruments REG1117F33KTTTG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

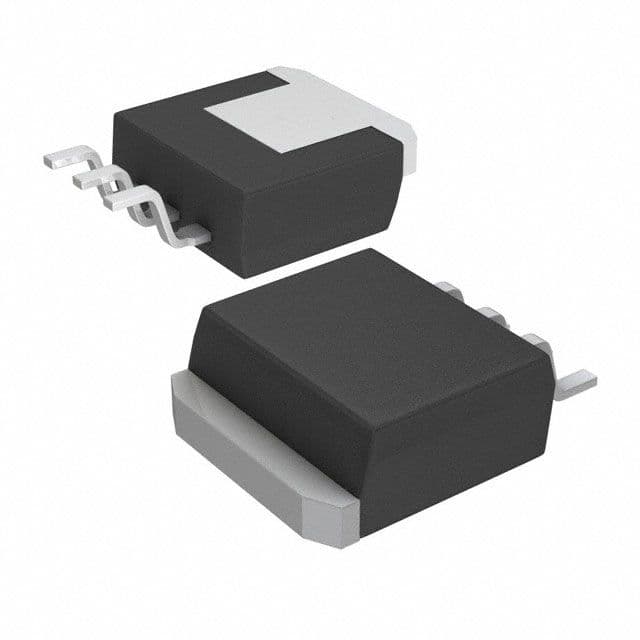

Product Images
