1A Low Dropout Positive Regulator, featuring a fixed 2.5V output voltage with 1% accuracy. This linear voltage regulator operates with a minimum input voltage of 3.8V and a maximum of 15V, offering a low dropout voltage of 1.2V. Designed for surface-mount applications, it is housed in a TO-263 package and supports an output current of up to 1A. The component operates within a temperature range of 0°C to 125°C and is RoHS compliant.
PackageTO-263
Voltage2.5V
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117FA-2.5KTTT technical specifications.
General
Accuracy
1%
Package/Case
TO-263
Dropout Voltage
1.2V
Height
4.44mm
Input Bias Current
4mA
Lead Free
Lead Free
Length
10.18mm
Min Current Limit
1A
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Max Supply Voltage
15V
Min Supply Voltage
3.8V
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Voltage
2.5V
Width
8.41mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117FA-2.5KTTT Datasheet
Download the complete datasheet for Texas Instruments REG1117FA-2.5KTTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

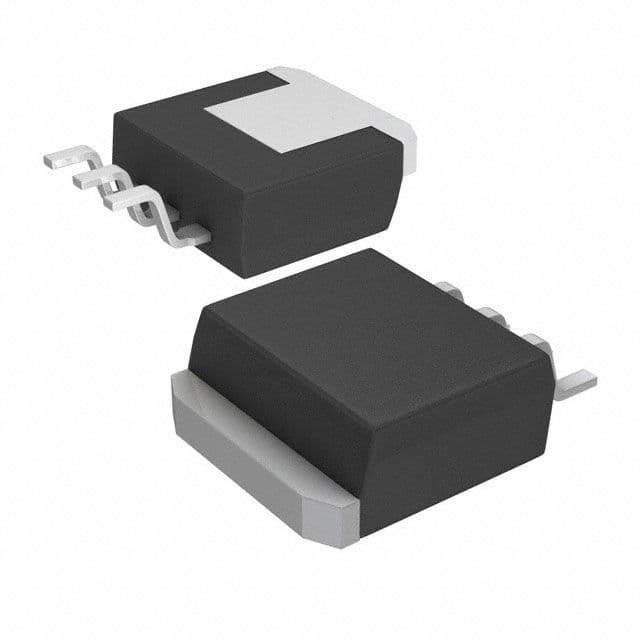

Product Images
