1A Low Dropout Positive Regulator, fixed 5V output voltage with 1% accuracy. Features a 1.2V dropout voltage and a maximum input voltage of 15V. Operates from 0°C to 125°C and is housed in a TO-263 package. RoHS compliant and lead-free.
PackageTO-263
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117FA-5.0KTTT technical specifications.
General
Accuracy
1%
Package/Case
TO-263
Dropout Voltage
1.2V
Height
4.44mm
Input Bias Current
4mA
Lead Free
Lead Free
Length
10.18mm
Min Current Limit
1A
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
5V
Min Output Voltage
5V
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
1%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.41mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117FA-5.0KTTT Datasheet
Download the complete datasheet for Texas Instruments REG1117FA-5.0KTTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

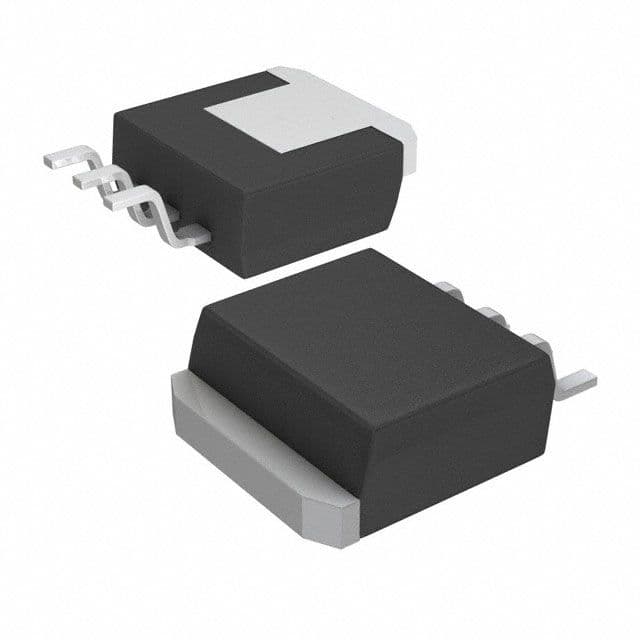

Product Images
