1.8V 1A LDO Regulator, TO-263, 15V In, 1.2V Dropout

Texas Instruments

REG1117FA1.8KTTTG3

Name: REG1117FA1.8KTTTG3 Texas Instruments
Brand: Texas Instruments
SKU: REG1117FA1.8KTTTG3

1.8V 1A LDO Regulator, TO-263, 15V In, 1.2V Dropout

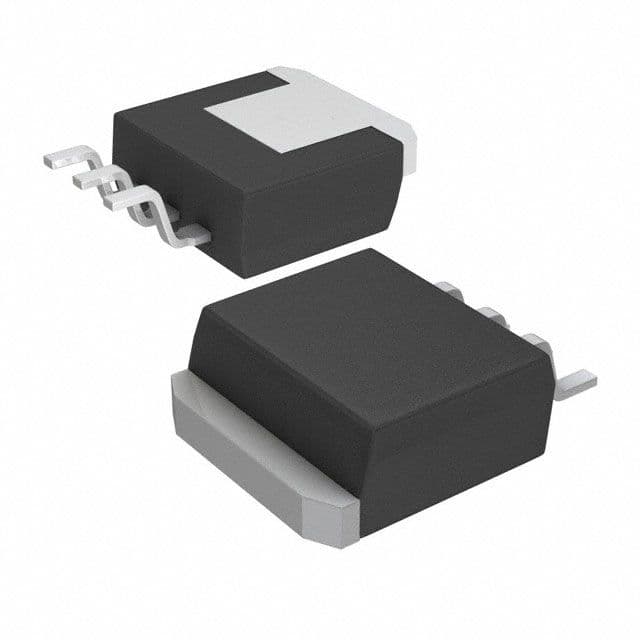

1-A, 1.8V fixed positive linear voltage regulator with 1% accuracy. Features a 1.2V dropout voltage and a maximum input voltage of 15V. Operates across a wide temperature range of -40°C to +125°C. Packaged in a TO-263-4 (3-DDPAK/TO-263) surface-mount package, supplied on tape and reel. RoHS compliant and lead-free.

PackageTO-263-4

PolarityPositive

Quick Jump:

Technical Specifications

Texas Instruments REG1117FA1.8KTTTG3 technical specifications.

General

Accuracy	1%
Package/Case	TO-263-4
Dropout Voltage	1.2V
Input Bias Current	4mA
Lead Free	Lead Free
Min Current Limit	1A
Max Input Voltage	15V
Min Input Voltage	3.8V
Max Operating Temperature	125°C
Min Operating Temperature	0°C
Max Output Current	1A
Max Output Voltage	1.8V
Min Output Voltage	1.8V
Number of Outputs	1
Number of Regulators	1
Output Current	1A
Output Type	Fixed
Output Voltage	1.8V
Package Quantity	50
Packaging	Tape and Reel
Polarity	Positive
Quiescent Current	4mA
Radiation Hardening	No
RoHS Compliant	Yes
