1A Low Dropout Positive Regulator, featuring a fixed 2.5V output voltage with 1% accuracy. This linear voltage regulator operates with a maximum input voltage of 15V and a minimum of 3.8V, offering a dropout voltage of 1.1V. Designed for power management, it delivers up to 1A output current and boasts a Power Supply Rejection Ratio (PSRR) of 62dB. Packaged in a TO-263 case, it operates from 0°C to 125°C and is RoHS compliant.
PackageTO-263
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117FA2.5KTTTG3 technical specifications.
General
Accuracy
1%
Package/Case
TO-263
Dropout Voltage
1.1V
Input Bias Current
4mA
Lead Free
Lead Free
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
2.5V
Output Voltage Accuracy
1%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
62dB
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117FA2.5KTTTG3 Datasheet
Download the complete datasheet for Texas Instruments REG1117FA2.5KTTTG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

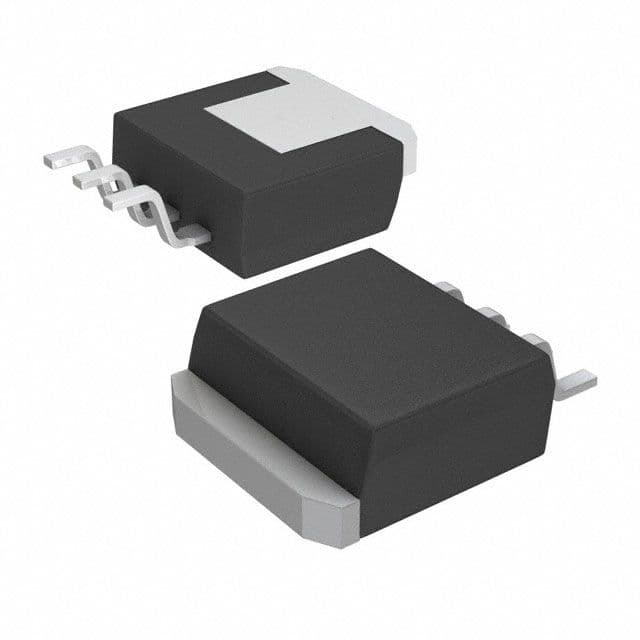

Product Images
