Adjustable positive linear voltage regulator with 1A maximum output current. Features a 1.2V dropout voltage and a 1.262V reference voltage. Operates with an input voltage range from 3.8V to 15V, providing an adjustable output voltage up to 13.5V with 1% accuracy. Packaged in a TO-263 (3-DDPAK) surface-mount case, this RoHS compliant component has a quiescent current of 4mA.
PackageTO-263
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117FAKTTT technical specifications.
General
Package/Case
TO-263
Dropout Voltage
1.2V
Input Bias Current
4mA
Lead Free
Lead Free
Min Current Limit
1A
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
13.5V
Min Output Voltage
1.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Adjustable
Output Voltage
13.5V
Output Voltage Accuracy
1%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4mA
Reach SVHC Compliant
No
Reference Voltage
1.262V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117FAKTTT Datasheet
Download the complete datasheet for Texas Instruments REG1117FAKTTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

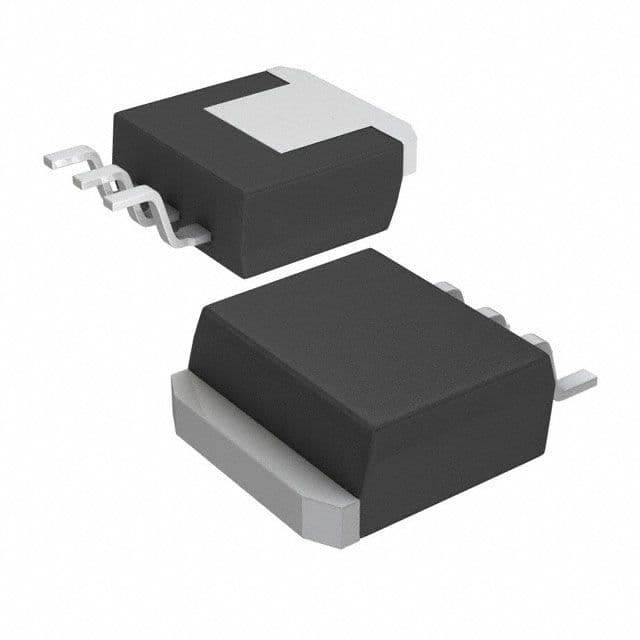

Product Images
