Automotive 5.5V fixed output charge pump regulator, operating from a 3V to 5.5V input range. Delivers up to 60mA output current with a 5.2V to 5.8V adjustable output voltage. Features a low 65µA quiescent current and a wide operating temperature range of -40°C to 85°C. Packaged in a 6-pin ThinSOT-23, this lead-free, RoHS-compliant component is supplied on tape and reel.
PackageSOT-23-6
Quick Jump:
Technical Specifications
Texas Instruments REG71055IDDCRQ1 technical specifications.
General
Package/Case
SOT-23-6
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
60mA
Max Output Voltage
5.8V
Min Output Voltage
5.2V
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Outputs
1
Output Configuration
Positive
Output Current
60mA
Output Type
Fixed
Output Voltage
5.5V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
65uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Synchronous Rectifier
No
Topology
Charge Pump, Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG71055IDDCRQ1 Datasheet
Download the complete datasheet for Texas Instruments REG71055IDDCRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

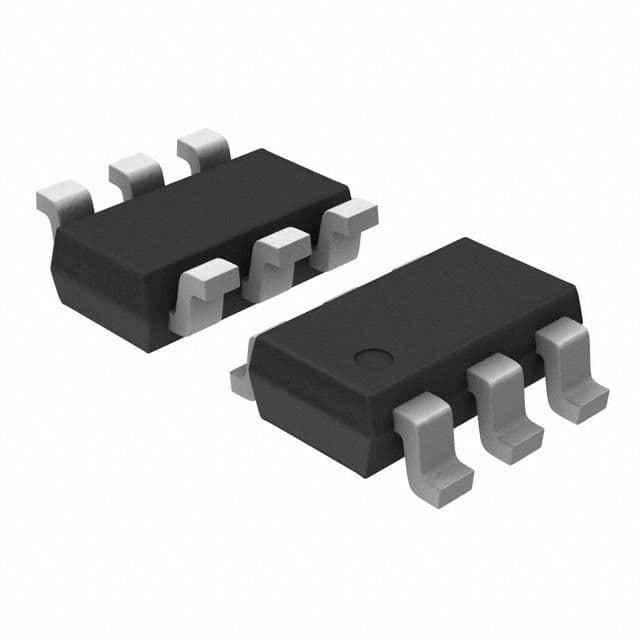

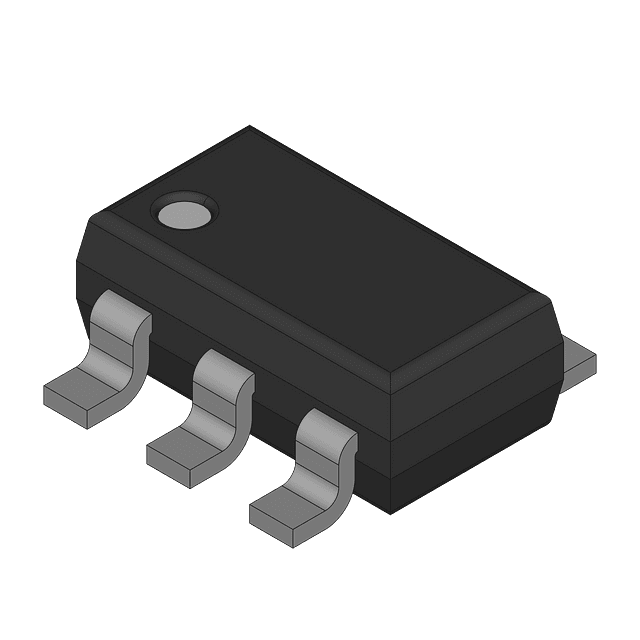

Product Images
