TEXAS INSTRUMENTS

RI-I17-114A-01

Datasheet

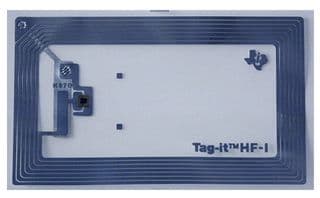

Tag-it HF-I Standard CD Inlays, 256b, 13.56MHz, 70°C, RoHS Compliant

Texas Instruments

RI-I17-114A-01

Name: RI-I17-114A-01 Texas Instruments
Brand: Texas Instruments
SKU: RI-I17-114A-01

Tag-it HF-I Standard CD Inlays, 256b, 13.56MHz, 70°C, RoHS Compliant

The Tag-it HF-I Standard CD Inlays are specialized ICs from Texas Instruments, packaged in a module format. They operate within a temperature range of -25°C to 70°C and are compliant with RoHS regulations. The inlays have a memory size of 256 bits and an operating frequency of 13.56 MHz. They are available in tape and reel packaging.

Frequency13.56MHz

PackageModule

Quick Jump:

Technical Specifications

Texas Instruments RI-I17-114A-01 technical specifications.

General

Package/Case	Module
Depth	32.5mm
Diameter	32.5mm
Frequency	13.56MHz
Lead Free	Contains Lead
Length	32.5mm
Max Operating Temperature	70°C
Memory Size	256b
Min Operating Temperature	-25°C
Operating Frequency	13.56 MHz
Package Quantity	1
Packaging	Tape and Reel
Radiation Hardening	No
RoHS Compliant	Yes
Series	Tag-it™ HF-I Standard CD Inlays
Thickness	100um
