Texas Instruments
SCAN921260UJB/NOPB
1-Input 10-Output Surface Mount Bus Transceiver, 660Mbps, -40°C to 85°C, Lead Free
The Texas Instruments SCAN921260UJB/NOPB is a surface mount bus transceiver with 1 input and 10 outputs, operating at a maximum data rate of 660Mbps. It is designed to operate within a temperature range of -40°C to 85°C and is compliant with lead-free standards. The device is packaged in a LBGA package with dimensions of 15mm in length, 15mm in width, and 1.47mm in height. The transceiver is suitable for use in high-speed communication applications.
PackageLBGA
MountingSurface Mount
Power1.98kW
Quick Jump:
Technical Specifications
Texas Instruments SCAN921260UJB/NOPB technical specifications.
General
| Package/Case | LBGA |
| Data Rate | 660Mbps |
| Height | 1.47mm |
| Lead Free | Lead Free |
| Length | 15mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Inputs | 1 |
| Number of Outputs | 10 |
| Packaging | Tray |
| Power Consumption | 1.98kW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Thickness | 1.37mm |
| Width | 15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SCAN921260UJB/NOPB Datasheet
Download the complete datasheet for Texas Instruments SCAN921260UJB/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

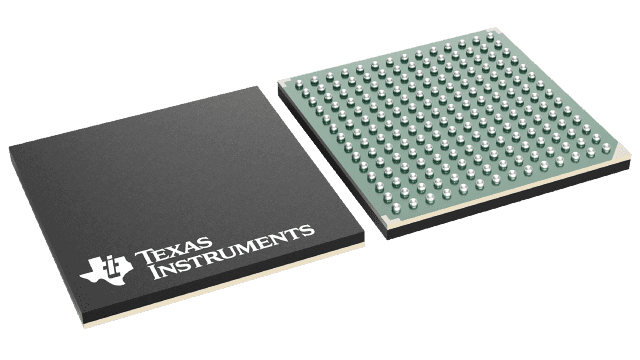

Product Images
