Texas Instruments
SCAN928028TUF/NOPB
8 Channel 10:1 Serializer with IEEE 1149.1 and At-Speed BIST 196-NFBGA -40 to 85
PackageLBGA
MountingSurface Mount
Power868W
Quick Jump:
Technical Specifications
Texas Instruments SCAN928028TUF/NOPB technical specifications.
General
Package/Case
LBGA
Data Rate
660Mbps
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
740mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
10
Number of Elements
8
Number of Inputs
10
Number of Outputs
1
Number of Receivers
1
Operating Supply Voltage
3.3V
Packaging
Tray
Power Consumption
868W
Power Dissipation
740mW
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SCAN928028TUF/NOPB Datasheet
Download the complete datasheet for Texas Instruments SCAN928028TUF/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

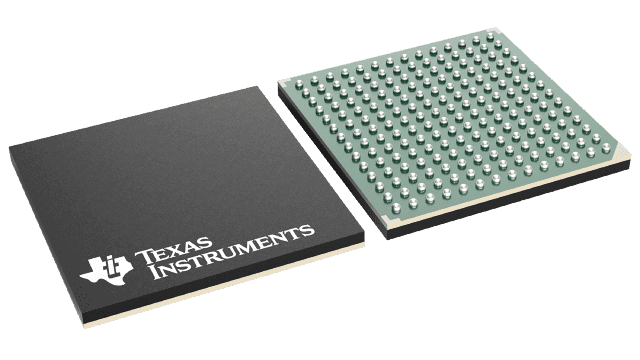

Product Images
