High-performance RS-485 transceiver designed for robust industrial communication. Features fault protection up to 70V, operating from a 3.15V to 5.5V supply. Delivers a data rate of 0.115Mbps with a typical propagation delay of 200ns. Housed in a compact 8-SOIC surface-mount package, this half-duplex transceiver offers a wide operating temperature range of -40°C to 105°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD1780D technical specifications.
General
Package/Case
SOIC
Data Rate
0.115Mbps
Height
1.58mm
Interface
RS-485
Lead Free
Lead Free
Length
4.9mm
Logic Function
Transceiver
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
905mW
Max Supply Voltage
5.5V
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
6mA
Operating Supply Voltage
5V
Package Quantity
75
Packaging
Rail/Tube
Propagation Delay
200ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Weight
0.002677oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD1780D Datasheet
Download the complete datasheet for Texas Instruments SN65HVD1780D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

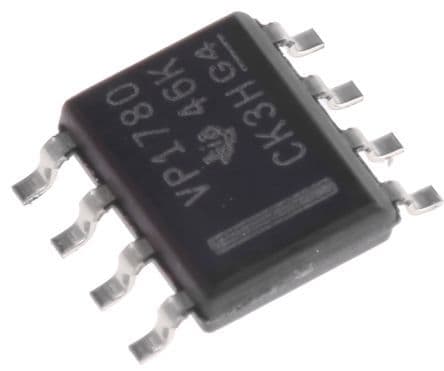

Product Images
