Texas Instruments
SN65LV1023AMDBREP
Enhanced Product 10:1 Lvds Serdes Transmitter 100-660 Mbps 28-SSOP -55 to 125
PackageSSOP
MountingSurface Mount
Power1.27W
Quick Jump:
Technical Specifications
Texas Instruments SN65LV1023AMDBREP technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 660Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.27W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Elements | 1 |
| Number of Inputs | 10 |
| Number of Outputs | 1 |
| Number of Receivers | 10 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.27W |
| RoHS Compliant | Yes |
| Series | 65LV |
| Weight | 0.007351oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65LV1023AMDBREP Datasheet
Download the complete datasheet for Texas Instruments SN65LV1023AMDBREP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

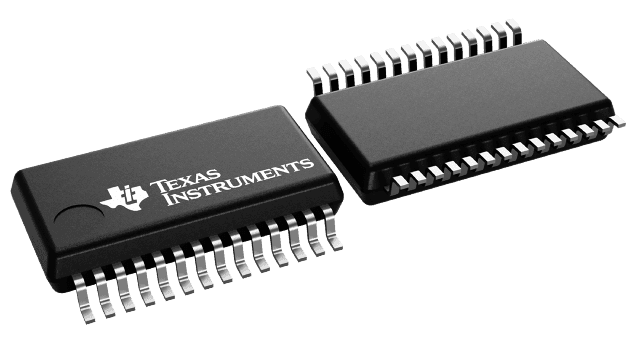

Product Images
