TEXAS INSTRUMENTS

SN65LVDS116DGGR

Datasheet

1:16 LVDS Clock Fanout Buffer, 400Mbps, 3.3V, 16-Out TSSOP

Texas Instruments

SN65LVDS116DGGR

Name: SN65LVDS116DGGR Texas Instruments
Brand: Texas Instruments
SKU: SN65LVDS116DGGR

1:16 LVDS Clock Fanout Buffer, 400Mbps, 3.3V, 16-Out TSSOP

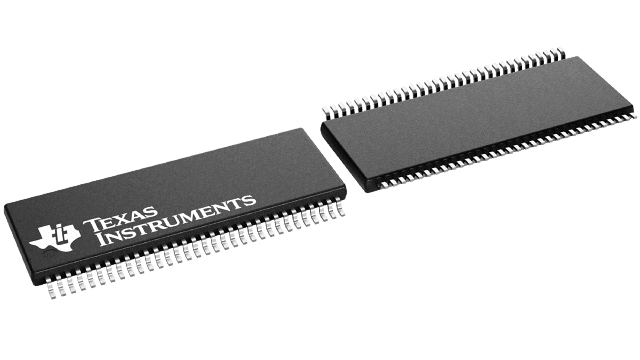

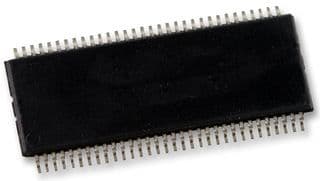

1:16 LVDS Clock Fanout Buffer, a surface mount integrated circuit, offers a 400Mbps data rate with a 4.7ns propagation delay. This bus transceiver operates from a 3V to 3.6V supply voltage, typically 3.3V, with a maximum operating supply current of 115mA. Packaged in a 64-TSSOP, it features 16 drivers and 16 outputs, suitable for applications within a -40°C to 85°C temperature range. The component is lead-free and RoHS compliant.

PackageTSSOP

Current115mA

MountingSurface Mount

Power2.094W

Quick Jump:

Technical Specifications

Texas Instruments SN65LVDS116DGGR technical specifications.

General

Package/Case	TSSOP
Data Rate	400Mbps
Lead Free	Lead Free
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	3.6V
Min Supply Voltage	3V
Mount	Surface Mount
Number of Drivers	16
Number of Elements	16
Number of Outputs	16
Number of Receivers	16
Operating Supply Current	115mA
Operating Supply Voltage	3.3V
Package Quantity	1
Packaging	Tape and Reel
Power Dissipation	2.094W
Propagation Delay	4.7ns
Radiation Hardening	No
RoHS Compliant	Yes
Series	65LVDS
Supply Current	115mA
Turn-On Delay Time	4.7ns
Weight	0.009263oz
