Dual 8-port LVDS repeater for high-speed data transmission. Features 16 drivers and 2 receivers with a maximum data rate of 400Mbps. Operates from a 3V to 3.6V supply voltage with a typical 3.3V operating voltage. Packaged in a 64-TSSOP for surface mounting, this RoHS compliant component offers a propagation delay of 4.5ns and a wide operating temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Power2.094W
Quick Jump:
Technical Specifications
Texas Instruments SN65LVDS117DGG technical specifications.
General
Package/Case
TSSOP
Data Rate
400Mbps
Lead Free
Lead Free
Logic Function
Buffer, Translator
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.094W
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
16
Number of Elements
2
Number of Receivers
2
Operating Supply Current
122mA
Operating Supply Voltage
3.3V
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
2.094W
Propagation Delay
4.5ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
65LVDS
Turn-On Delay Time
4.5ns
Weight
0.009263oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65LVDS117DGG Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS117DGG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

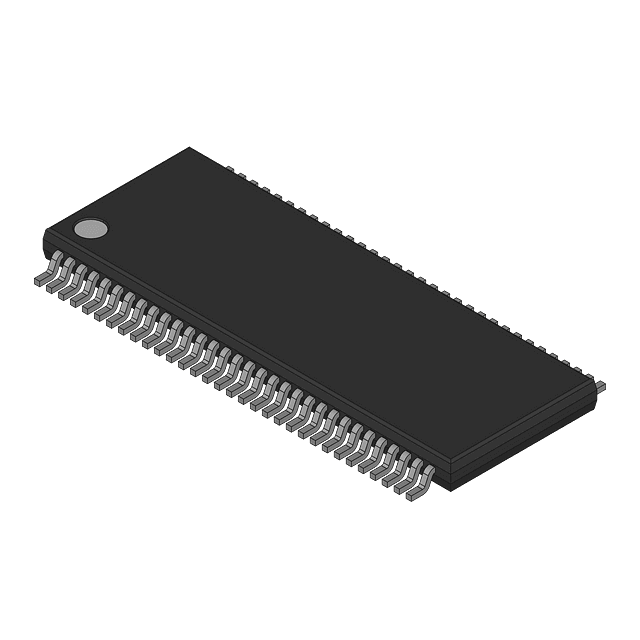

Product Images
