Dual 8-port LVDS repeater IC, featuring 16 drivers and 2 receivers, operates with a 3V to 3.6V supply voltage and a 3.3V nominal voltage. This surface mount component supports a 400Mbps data rate with a 4.5ns propagation and turn-on delay. Packaged in a 64-TSSOP, it offers a wide operating temperature range of -40°C to 85°C and is RoHS compliant.
PackageTSSOP
MountingSurface Mount
Power2.094W
Quick Jump:
Technical Specifications
Texas Instruments SN65LVDS117DGGR technical specifications.
General
Package/Case
TSSOP
Data Rate
400Mbps
Lead Free
Lead Free
Logic Function
Buffer, Translator
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.094W
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
16
Number of Elements
2
Number of Receivers
2
Operating Supply Current
122mA
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.094W
Propagation Delay
4.5ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
65LVDS
Turn-On Delay Time
4.5ns
Weight
0.009263oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65LVDS117DGGR Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS117DGGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

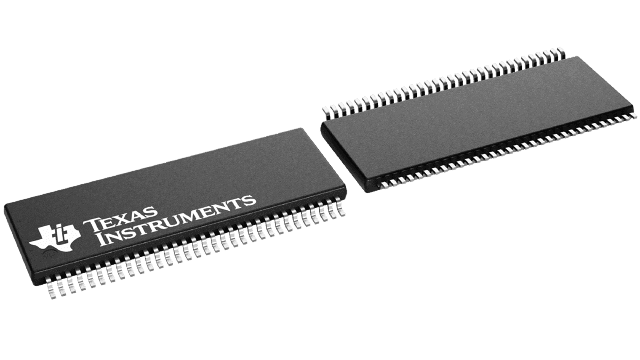

Product Images
