Texas Instruments
SN65LVDS16DRFT
2.5-V/3.3-V oscillator gain stage/buffer with enable with single ended input 8-WSON -40 to 85
Current40mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65LVDS16DRFT technical specifications.
General
Data Rate
4000Mbps
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
161mW
Max Supply Voltage
3.6V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Operating Supply Current
48mA
Output Current
400uA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
340ps
Radiation Hardening
No
RoHS Compliant
Yes
Series
65LVDS
Supply Current
40mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65LVDS16DRFT Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS16DRFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

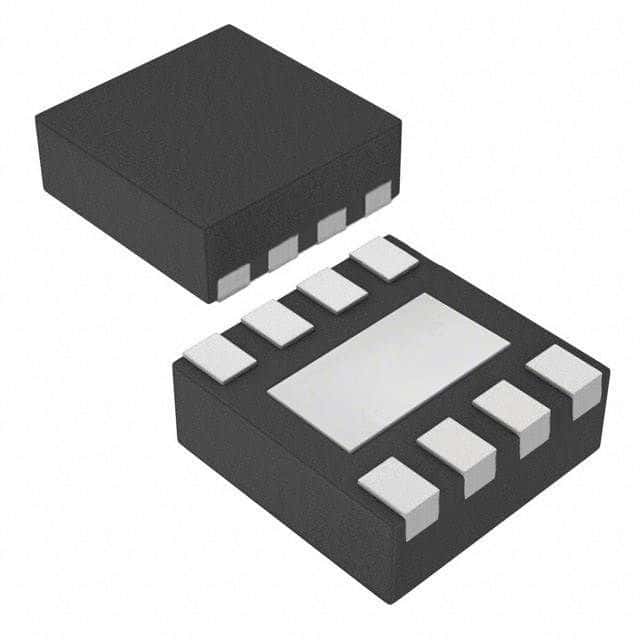

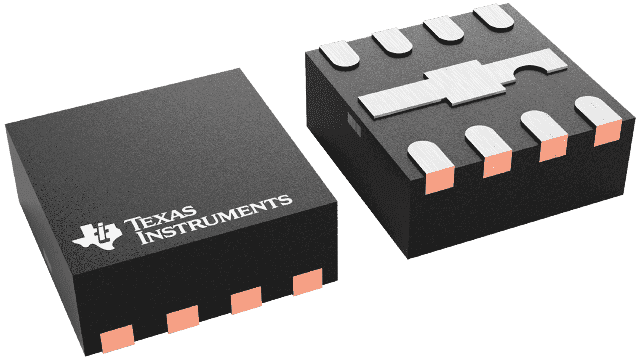

Product Images
