16-channel LVDS receiver, a bus transceiver IC designed for high-speed data transmission. Features a 630Mbps data rate and operates with a 3.3V supply voltage, supporting a range of 3V to 3.6V. This surface mount component is housed in a 64-TSSOP package and offers a wide operating temperature range from -40°C to 85°C. It boasts a propagation delay of 4ns and is RoHS compliant.
PackageTSSOP
Current70mA
MountingSurface Mount
Power2.094W
Quick Jump:
Technical Specifications
Texas Instruments SN65LVDS386DGG technical specifications.
General
Package/Case
TSSOP
Data Rate
630Mbps
Interface
LVDS
Lead Free
Lead Free
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
16
Number of Elements
16
Number of Receivers
16
Operating Supply Voltage
3.3V
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
2.094W
Propagation Delay
4ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
65LVDS
Supply Current
70mA
Turn-On Delay Time
4ns
Weight
0.009263oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65LVDS386DGG Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS386DGG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

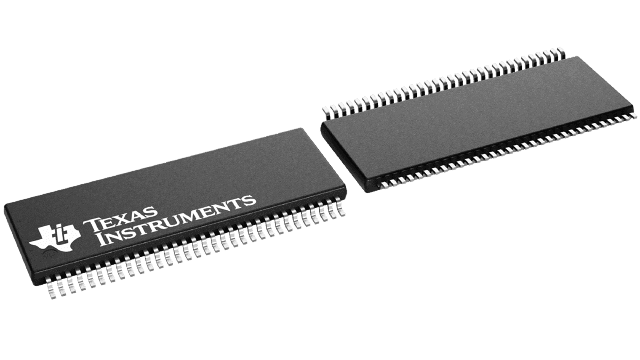

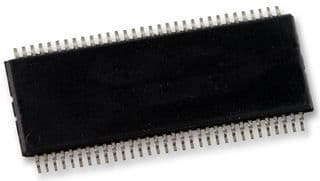

Product Images
