PackageHVSSOP
Current18mA
MountingSurface Mount
Power2.14W
Quick Jump:
Technical Specifications
Texas Instruments SN65LVDS9637DGNR technical specifications.
General
| Package/Case | HVSSOP |
| Data Rate | 150Mbps |
| Lead Free | Lead Free |
| Logic Function | Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Elements | 2 |
| Number of Receivers | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.14W |
| Propagation Delay | 6.1ns |
| RoHS Compliant | Yes |
| Series | 65LVDS |
| Supply Current | 18mA |
| Turn-On Delay Time | 6.1ns |
| Weight | 0.00067oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65LVDS9637DGNR Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS9637DGNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

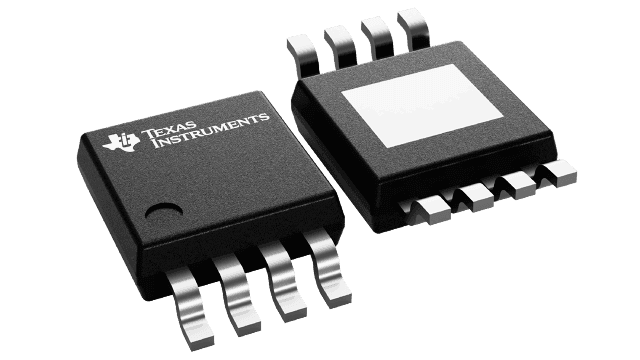

Product Images
