Four-element, 2-input NAND gate IC with buffer functionality. This bipolar logic gate operates at 5V with a supply voltage range of 4.75V to 5.25V. Features include a 48mA low-level output current and 22ns propagation delay. Packaged in a 14-pin PDIP for through-hole mounting, this RoHS compliant component has a maximum operating temperature of 70°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN7438N technical specifications.
General
| Package/Case | PDIP |
| Height | 4.57mm |
| High Level Output Current | -250uA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | NAND GATE, Buffer |
| Low Level Output Current | 48mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 48mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 22ns |
| Quiescent Current | 34mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 7400 |
| Technology | BIPOLAR |
| Termination | Through Hole |
| Thickness | 3.9mm |
| Turn-On Delay Time | 22ns |
| Weight | 0.032734oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN7438N Datasheet
Download the complete datasheet for Texas Instruments SN7438N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

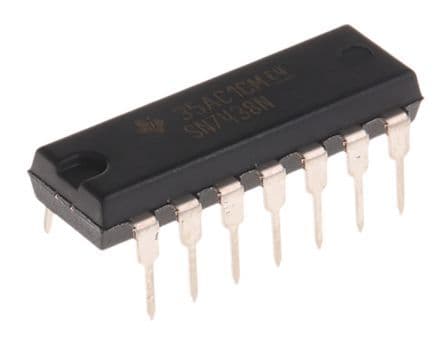

Product Images
