Texas Instruments
SN74ABT162841DL
20-Bit Bus-Interface D-Type Latches With 3-State Outputs 56-SSOP -40 to 85
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT162841DL technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | 12mA |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Logic Function | D-Type, Latch |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 20 |
| Number of Elements | 2 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 7.1ns |
| RoHS Compliant | Yes |
| Series | 74ABT |
| Technology | BICMOS |
| Turn-On Delay Time | 3.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ABT162841DL Datasheet
Download the complete datasheet for Texas Instruments SN74ABT162841DL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

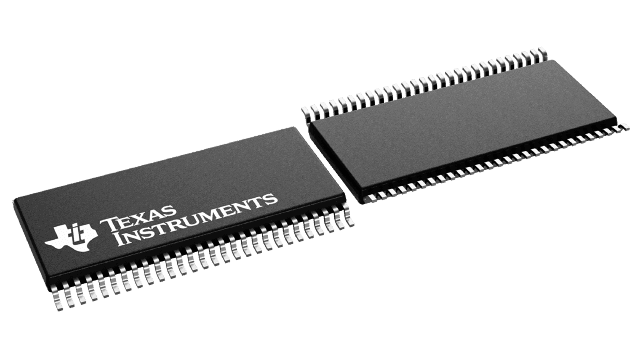

Product Images
