Octal buffer/driver featuring 3-state outputs, designed for surface mount applications in a 20-SOIC package. This BICMOS technology component offers 8 non-inverting buffer channels with a propagation delay of 3.5ns. It operates with a supply voltage range of 4.5V to 5.5V, supporting a high level output current of -32mA and a low level output current of 64mA. Suitable for a wide temperature range from -40°C to 85°C, this RoHS compliant device is ideal for logic buffering and line driving applications.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT541BDWR technical specifications.
General
Package/Case
SOIC
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Elements
1
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
8
Number of Outputs
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
3.5ns
Quiescent Current
22mA
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Thickness
2.35mm
Turn-On Delay Time
5.9ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT541BDWR Datasheet
Download the complete datasheet for Texas Instruments SN74ABT541BDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

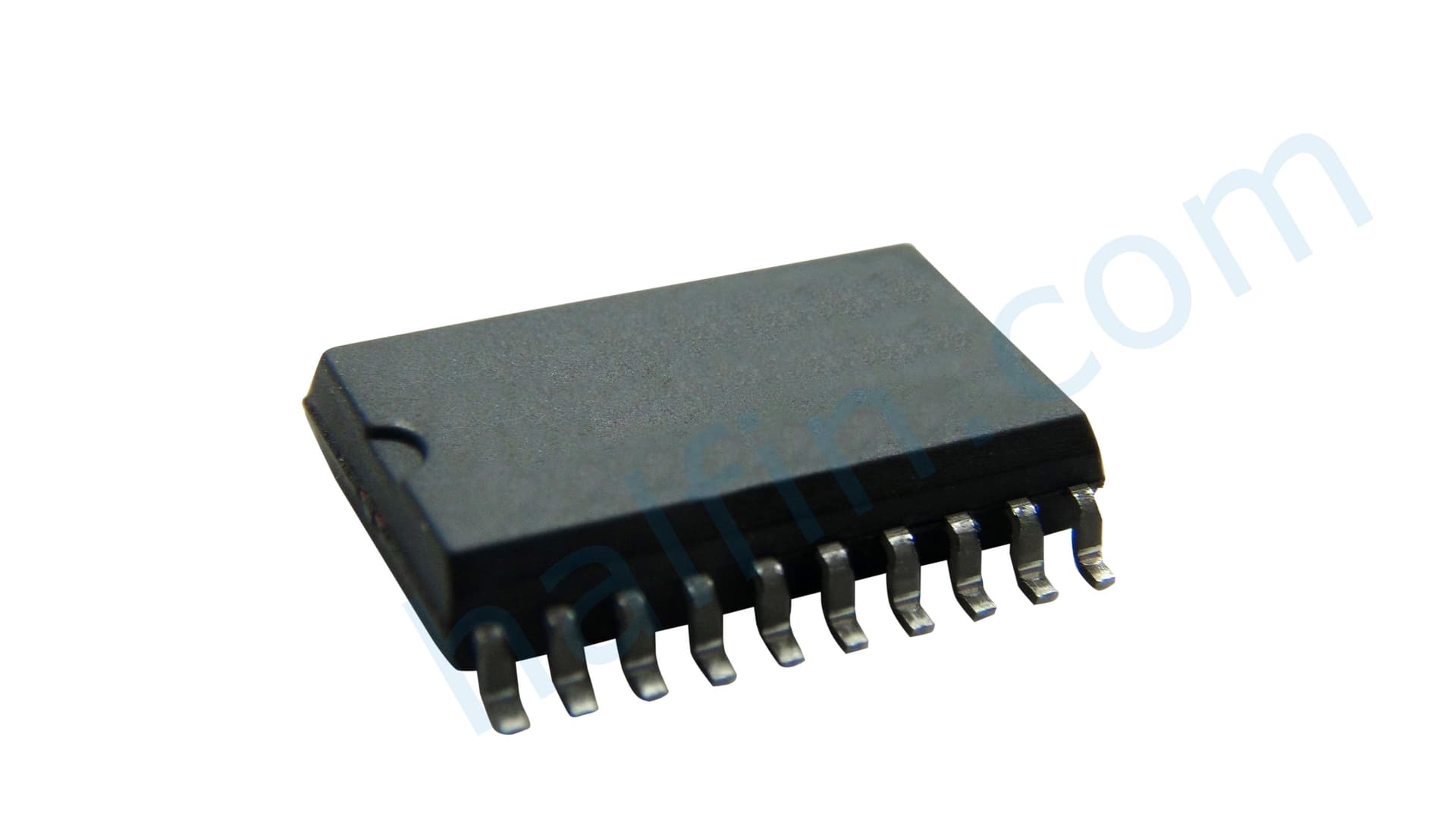

Product Images
