Octal edge-triggered D-type flip-flop with 3-state outputs, featuring 8 bits and positive edge clocking. Operates at up to 200MHz with a 5V supply voltage, supporting 64mA low-level output current and -32mA high-level output current. This BICMOS technology component is surface mountable in a 20-SO package, suitable for -40°C to 85°C operation. RoHS compliant and lead-free.
Frequency200MHz
PackageSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT574ANSR technical specifications.
General
Package/Case
SOP
Clock Edge Trigger Type
Positive Edge
Frequency
200MHz
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
D-Type, Flip-Flop
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
8
Number of Output Lines
3
Number of Outputs
8
Operating Supply Voltage
5V
Output Current
64mA
Output Type
TTL, 3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
6.6ns
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Turn-On Delay Time
3.9ns
Weight
0.009408oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT574ANSR Datasheet
Download the complete datasheet for Texas Instruments SN74ABT574ANSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

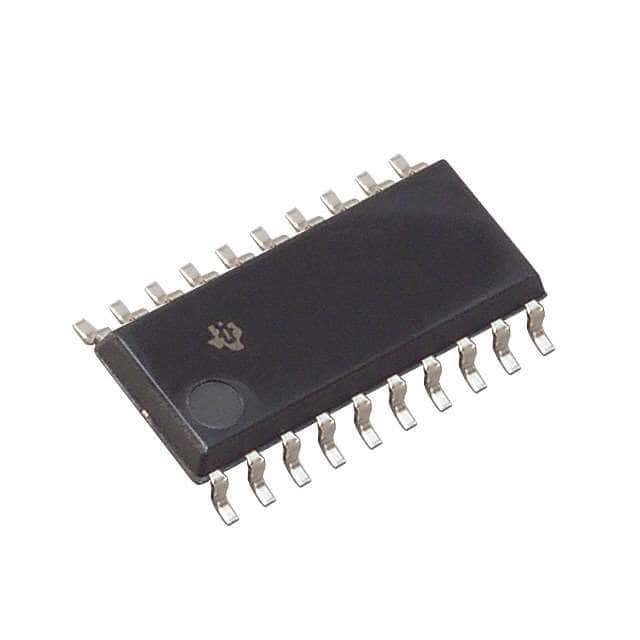

Product Images
