Octal bidirectional bus transceiver with 3-state outputs, featuring BICMOS technology. This logic IC offers 8 channels with inverting logic function and a maximum operating temperature of 85°C. It supports a supply voltage range of 4.5V to 5.5V, with a typical operating voltage of 5V, and provides 64mA high-level output current and 32mA low-level output current. Packaged in a 24-pin SOIC for surface mounting, this RoHS compliant component is supplied on tape and reel.
PackageSOIC
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT651DWR technical specifications.
General
Package/Case
SOIC
Direction
Bidirectional
High Level Output Current
64mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Outputs
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Inverting
Propagation Delay
5.1ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Turn-On Delay Time
8.5ns
Weight
0.022025oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT651DWR Datasheet
Download the complete datasheet for Texas Instruments SN74ABT651DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

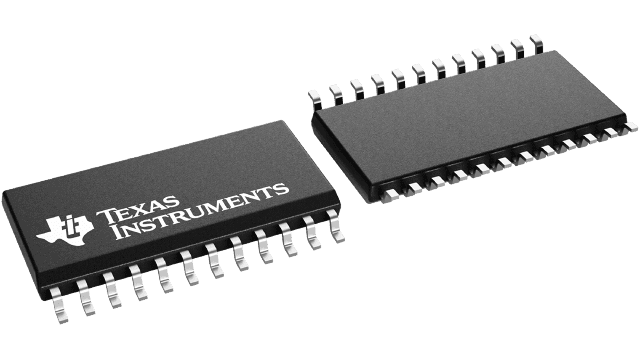

Product Images
