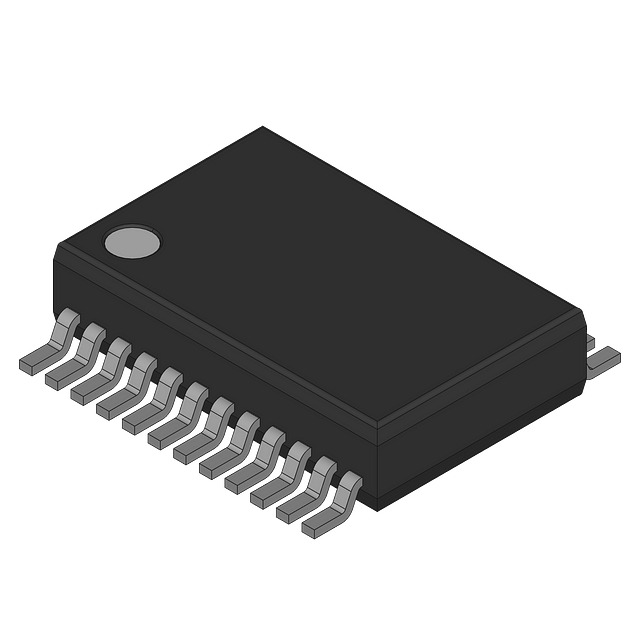

9-bit bidirectional bus transceiver with 3-state outputs, featuring BICMOS technology. Offers a wide operating supply voltage range of 4.5V to 5.5V, with a nominal 5V. Supports high level output current of 64mA and low level output current of 32mA. Packaged in a 24-SSOP for surface mounting, with a minimum operating temperature of -40°C and a maximum of 85°C. This RoHS compliant component is supplied on tape and reel.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT863DBR technical specifications.
General
Package/Case
SSOP
Direction
Bidirectional
High Level Output Current
64mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
9
Number of Bits per Element
9
Number of Channels
9
Number of Circuits
1
Number of Elements
1
Number of Outputs
9
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5.7ns
Quiescent Current
24mA
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Turn-On Delay Time
6.9ns
Weight
0.006081oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT863DBR Datasheet
Download the complete datasheet for Texas Instruments SN74ABT863DBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
