Octal Bus Transceiver with Registers, featuring 8-bit bidirectional data flow and 3-state outputs. This BICMOS technology device operates across a -40°C to 85°C temperature range with a supply voltage of 4.5V to 5.5V. It offers a maximum output current of 64mA and a propagation delay of 5.3ns. Packaged in a 28-SOIC surface-mount format, this RoHS-compliant component is suitable for scan test applications.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT8646DW technical specifications.
General
Package/Case
SOIC
Direction
Bidirectional
Evaluation Kit
Yes
Lead Free
Lead Free
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
64mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Outputs
8
Output Type
3-STATE
Package Quantity
20
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
5.3ns
Quiescent Current
30mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Termination
SMD/SMT
Turn-On Delay Time
13.5ns
Weight
0.025778oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT8646DW Datasheet
Download the complete datasheet for Texas Instruments SN74ABT8646DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

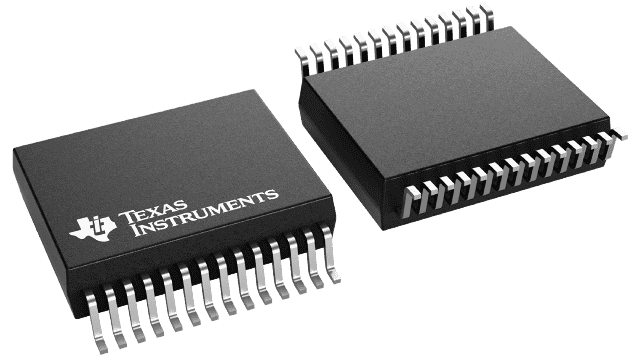

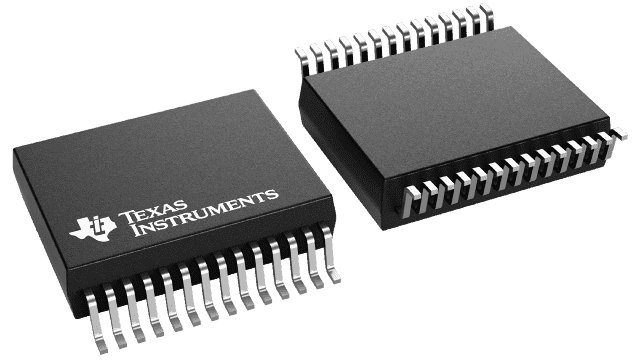

Product Images
