Texas Instruments
SN74ABT8952DL
Scan Test Devices With Octal Registered Bus Transceivers 28-SSOP -40 to 85
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT8952DL technical specifications.
General
Package/Case
SSOP
Direction
Bidirectional
Evaluation Kit
Yes
Lead Free
Lead Free
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
8
Number of Outputs
8
Output Type
3-STATE
Package Quantity
40
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ABT
Termination
SMD/SMT
Weight
0.080001oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT8952DL Datasheet
Download the complete datasheet for Texas Instruments SN74ABT8952DL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

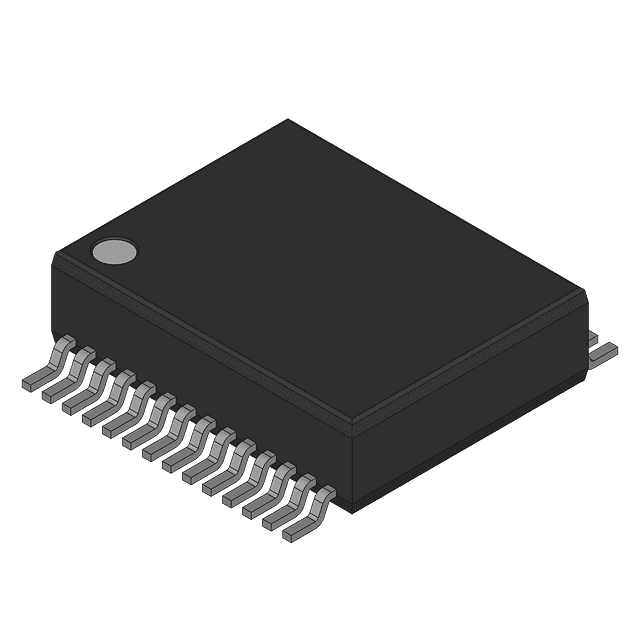

Product Images
