18-bit bus-interface flip-flops featuring D-type logic function and 3-state TTL outputs. Operates with a 5V supply voltage (4.5V to 5.5V range) and supports positive edge clock triggering up to 150MHz. Offers 64mA low-level output current and -32mA high-level output current. This BICMOS technology component is surface mountable in an SSOP package, with a propagation delay of 5.5ns and turn-on delay of 3.9ns. Suitable for operation across a -40°C to 85°C temperature range, it is RoHS compliant and lead-free.
Frequency150MHz
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABTH16823DLR technical specifications.
General
Package/Case
SSOP
Clock Edge Trigger Type
Positive Edge
Frequency
150MHz
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Flip-Flop, D-Type
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
18
Number of Bits per Element
9
Number of Circuits
2
Number of Elements
2
Number of Input Lines
9
Number of Output Lines
3
Number of Outputs
18
Operating Supply Voltage
5V
Output Current
64mA
Output Type
TTL, 3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5.5ns
RoHS Compliant
Yes
Series
74ABTH
Technology
BICMOS
Turn-On Delay Time
3.9ns
Weight
0.024508oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABTH16823DLR Datasheet
Download the complete datasheet for Texas Instruments SN74ABTH16823DLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

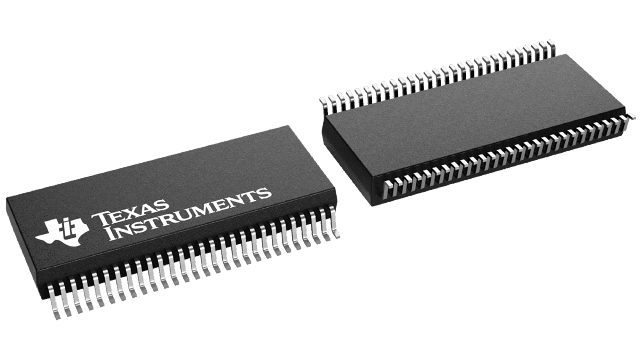

Product Images
