Texas Instruments
SN74ABTH182652APM
Scan Test Devices With 18-Bit Transceivers And Registers 64-LQFP -40 to 85
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ABTH182652APM technical specifications.
General
| Package/Case | LQFP |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bits | 18 |
| Number of Outputs | 18 |
| Operating Supply Voltage | 5.5V |
| Output Type | 3-STATE |
| Package Quantity | 160 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | 74ABTH |
| Weight | 0.012088oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ABTH182652APM Datasheet
Download the complete datasheet for Texas Instruments SN74ABTH182652APM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

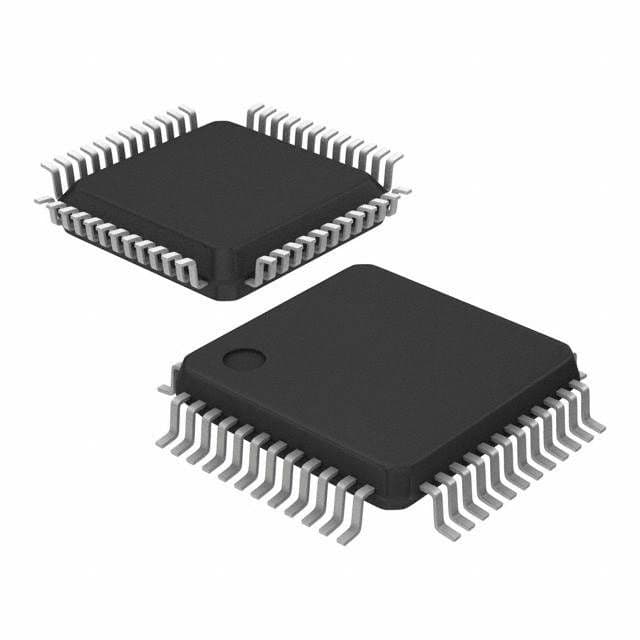

Product Images
