Automotive-grade hex inverter IC featuring six independent inverting gates. This CMOS logic component operates with a supply voltage range of 2V to 6V, typically 5V, and offers a propagation delay of 11ns. Designed for surface mounting in a 14-TSSOP package, it supports output currents of 24mA (low level) and -24mA (high level). The device boasts a wide operating temperature range from -40°C to 125°C and is RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AC04QPWRQ1 technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
Buffer, Inverter
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
6
Number of Circuits
6
Number of Elements
6
Number of Gates
6
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
11ns
Quiescent Current
2uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74AC
Technology
CMOS
Turn-On Delay Time
7.5ns
Weight
0.002018oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AC04QPWRQ1 Datasheet
Download the complete datasheet for Texas Instruments SN74AC04QPWRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

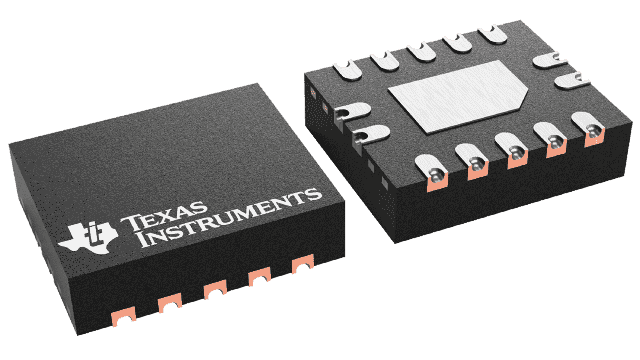

Product Images
