Triple 3-input positive-NAND gate IC, featuring 3 independent NAND gates with 3 input lines each. Operates with a supply voltage range of 2V to 6V and offers a high/low output current of 24mA. This surface mount component is housed in a 14-SSOP package, suitable for operation between -40°C and 85°C. It boasts a propagation delay of 7ns and a turn-on delay time of 8ns, with a quiescent current of 2uA. RoHS compliant and lead-free.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AC10DBR technical specifications.
General
Package/Case
SSOP
High Level Output Current
24mA
Lead Free
Lead Free
Logic Function
NAND GATE
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
3
Number of Circuits
3
Number of Gates
3
Number of Input Lines
3
Number of Inputs
3
Number of Output Lines
1
Output Current
24mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
7ns
Quiescent Current
2uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74AC
Turn-On Delay Time
8ns
Weight
0.004296oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AC10DBR Datasheet
Download the complete datasheet for Texas Instruments SN74AC10DBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

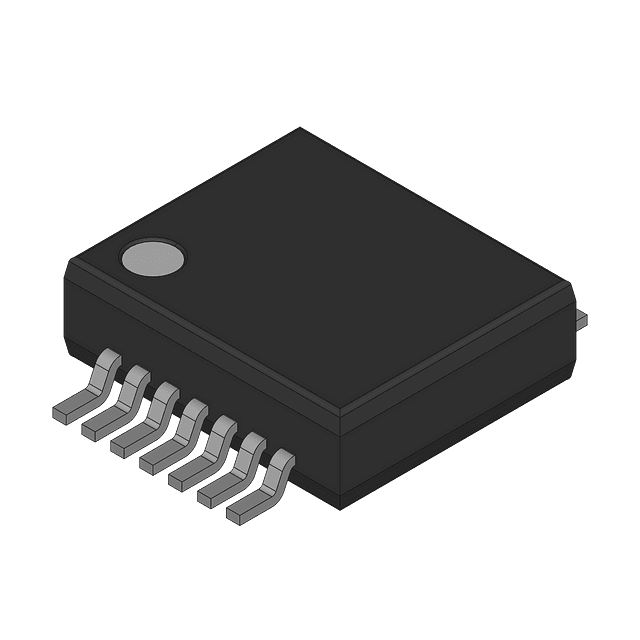

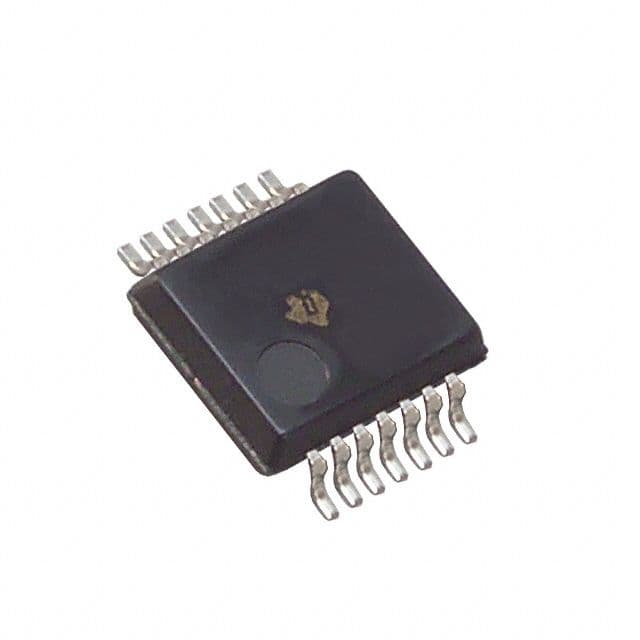

Product Images
