CMOS logic IC featuring six independent 1-input Schmitt trigger inverter gates. This surface mount component operates from a 2V to 6V supply voltage with a typical 5V operating voltage. It offers a 10ns propagation delay and ±24mA output current. The device is packaged in a 14-pin SSOP on tape and reel.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AC14DBRG4 technical specifications.
General
Package/Case
SSOP
High Level Output Current
-24mA
Input Type
SCHMITT TRIGGER
Lead Free
Contains Lead
Logic Function
Buffer, Inverter, Schmitt Trigger
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Circuits
6
Number of Elements
6
Number of Gates
6
Number of Inputs
1
Operating Supply Voltage
5V
Output Current
24mA
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
10ns
Quiescent Current
2uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74AC
Technology
CMOS
Turn-On Delay Time
15ns
Weight
0.004296oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AC14DBRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74AC14DBRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

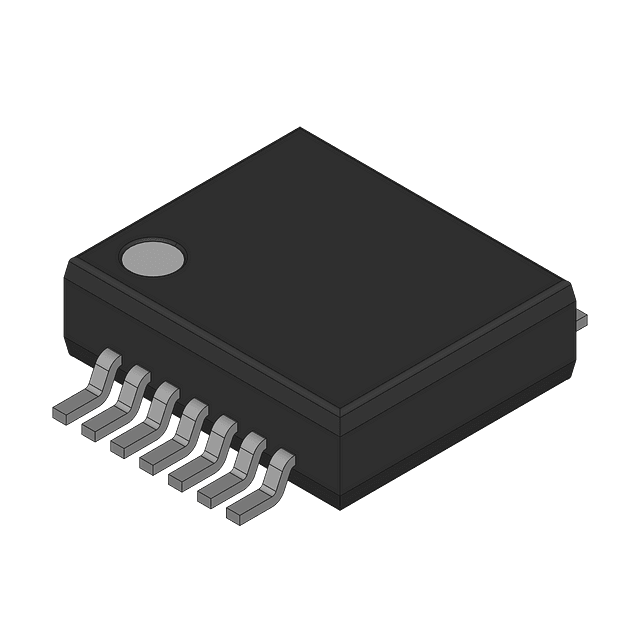

Product Images
