CMOS OR Gate IC featuring four independent 2-input OR gates. Operates with a supply voltage range of 2V to 6V, offering a maximum output current of 24mA. This through-hole mounted component comes in a PDIP package and boasts a propagation delay of 8.5ns. Designed for operation across a temperature range of -40°C to 85°C, it is RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74AC32N technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | OR GATE |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 24mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 24mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 8.5ns |
| Quiescent Current | 2uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74AC |
| Technology | CMOS |
| Termination | Through Hole |
| Turn-On Delay Time | 8.5ns |
| Weight | 0.032734oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AC32N Datasheet
Download the complete datasheet for Texas Instruments SN74AC32N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

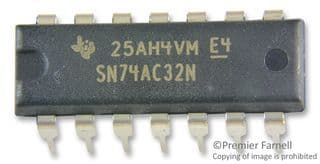

Product Images
