Surface mount NAND gate IC featuring four independent 2-input NAND gates. Operates with a supply voltage range of 4.5V to 5.5V, typically 5V, and offers a high level output current of -24mA and low level output current of 24mA. This CMOS technology component boasts a propagation delay of 9.5ns and is RoHS compliant. Encased in a 14-SOIC package, it functions across an operating temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT00DR technical specifications.
General
Package/Case
SOIC
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
NAND GATE
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
5V
Output Current
50mA
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
9.5ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ACT
Technology
CMOS
Turn-On Delay Time
9.5ns
Weight
0.004564oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT00DR Datasheet
Download the complete datasheet for Texas Instruments SN74ACT00DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

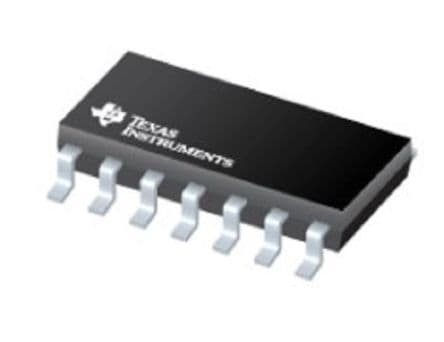

Product Images
