8-channel, 3-state buffer with TTL-compatible CMOS inputs. Features a supply voltage range of 4.5V to 5.5V, with an operating voltage of 5V. Offers 24mA high and low level output current. Operates across a temperature range of -40°C to 85°C. Packaged in a 20-SSOP for surface mounting, with a propagation delay of 9ns.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT244DBR technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -24mA |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 4 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 2 |
| Number of Input Lines | 8 |
| Number of Inputs | 8 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 9ns |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74ACT |
| Technology | CMOS |
| Termination | SMD/SMT |
| Thickness | 1.95mm |
| Turn-On Delay Time | 10.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ACT244DBR Datasheet
Download the complete datasheet for Texas Instruments SN74ACT244DBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

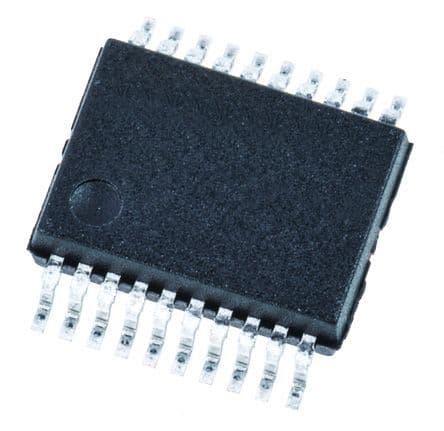

Product Images
