8-bit bidirectional bus transceiver, CMOS technology, 3-state outputs, and non-inverting logic. Features 8 channels with a maximum operating supply voltage of 5.5V and a typical operating voltage of 5V. Offers 24mA high and low level output current, with a propagation delay of 9ns. Packaged in a 20-pin SOIC for surface mounting, this RoHS compliant component operates within a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT245DWR technical specifications.
General
Package/Case
SOIC
Direction
Bidirectional
High Level Output Current
24mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Outputs
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
9ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ACT
Technology
CMOS
Turn-On Delay Time
12ns
Weight
0.017662oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT245DWR Datasheet
Download the complete datasheet for Texas Instruments SN74ACT245DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

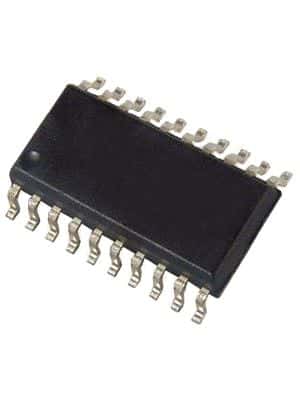

Product Images
