256 x 36 x 2 bidirectional synchronous FIFO memory, featuring an 11ns access time and a maximum operating frequency of 66.7MHz. This integrated circuit offers an 18Kb memory density with a 36-bit data bus width. Operates from a 4.5V to 5.5V supply voltage, with a typical operating voltage of 5V. Packaged in a 120-HLQFP for surface mounting, this component supports programmable flags and operates within a temperature range of 0°C to 70°C.
Frequency66.7MHz
PackageHLQFP
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT3622-15PCB technical specifications.
General
Access Time
11ns
Access Time-Max
11ns
Bus Directional
Bidirectional
Package/Case
HLQFP
Data Bus Width
36b
Density
18Kb
Direction
Bidirectional
Frequency
66.7MHz
FWFT Support
No
Lead Free
Contains Lead
Max Frequency
66.7MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Memory Size
18Kb
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
5V
Package Quantity
90
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
No
RoHS Compliant
Yes
Series
74ACT
Supply Current
400uA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT3622-15PCB Datasheet
Download the complete datasheet for Texas Instruments SN74ACT3622-15PCB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

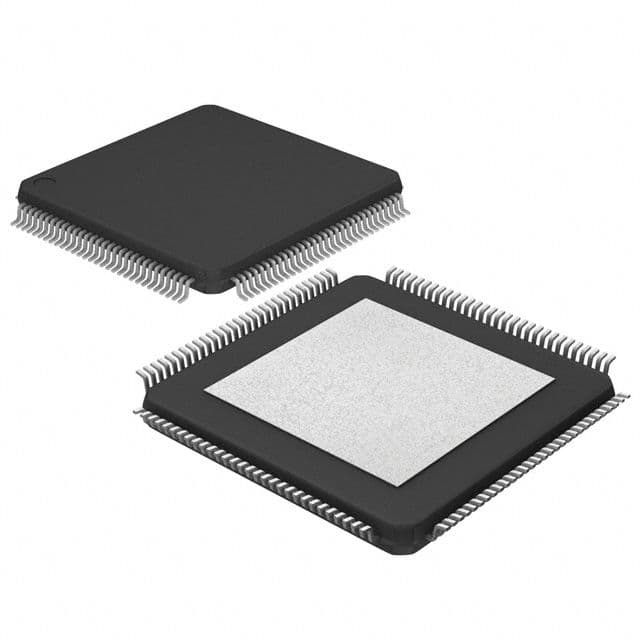

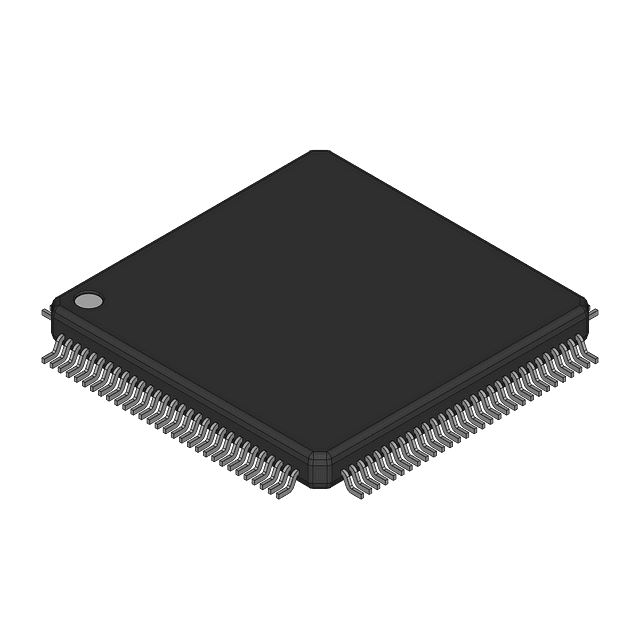

Product Images
