Texas Instruments
SN74ACT3622-20PCB

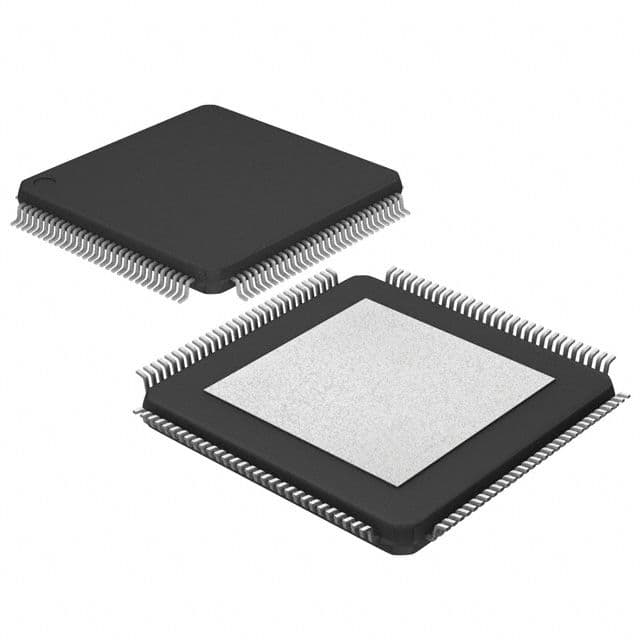

256 X 36 BI-DIRECTIONAL FIFO, 13 ns, PQFP120, GREEN, PLASTIC, HLQFP-120
Frequency50MHz
PackageHLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT3622-20PCB technical specifications.
General
Access Time
13ns
Bus Directional
Bidirectional
Package/Case
HLQFP
Data Bus Width
36b
Direction
Bidirectional
Frequency
50MHz
FWFT Support
No
Lead Free
Lead Free
Max Frequency
50MHz
Max Operating Temperature
70°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Memory Size
18Kb
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
2
Package Quantity
90
Packaging
Tray
Programmable Flags Support
Yes
Retransmit Capability
No
RoHS Compliant
Yes
Series
74ACT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT3622-20PCB Datasheet
Download the complete datasheet for Texas Instruments SN74ACT3622-20PCB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
