256 x 36 x 2 bidirectional synchronous FIFO memory, featuring an 18Kb density and 36-bit data bus width. Operates at a maximum frequency of 33.4MHz with a 15ns access time. This surface mount component supports programmable flags and is housed in a 120-HLQFP package, suitable for 0 to 70°C operation. RoHS compliant with a maximum supply voltage of 5.5V.
Frequency33.4MHz
PackageHLQFP
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT3622-30PCB technical specifications.
General
Access Time
15ns
Access Time-Max
15ns
Bus Directional
Bidirectional
Package/Case
HLQFP
Data Bus Width
36b
Density
18Kb
Direction
Bidirectional
Frequency
33.4MHz
FWFT Support
No
Lead Free
Lead Free
Max Frequency
33.4MHz
Max Operating Temperature
70°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Memory Size
18Kb
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
5V
Package Quantity
90
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
No
RoHS Compliant
Yes
Series
74ACT
Supply Current
400uA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT3622-30PCB Datasheet
Download the complete datasheet for Texas Instruments SN74ACT3622-30PCB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

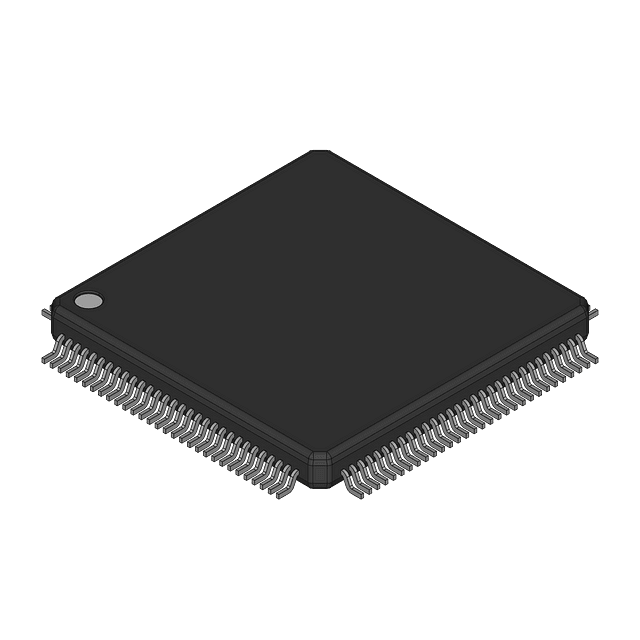

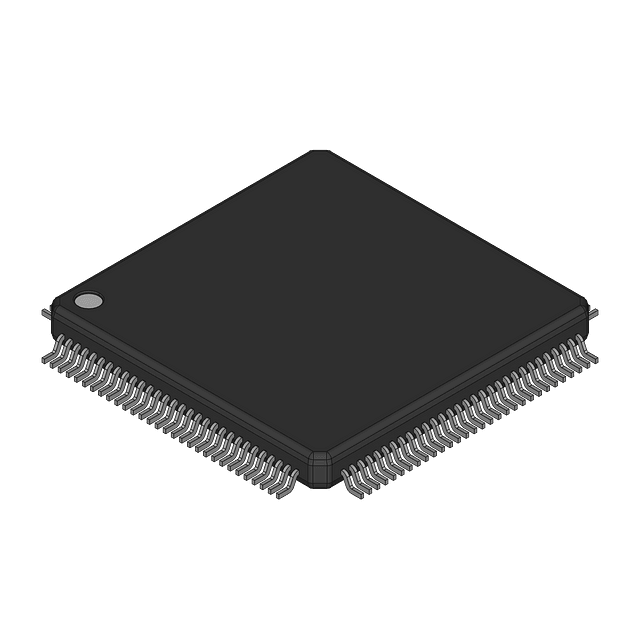

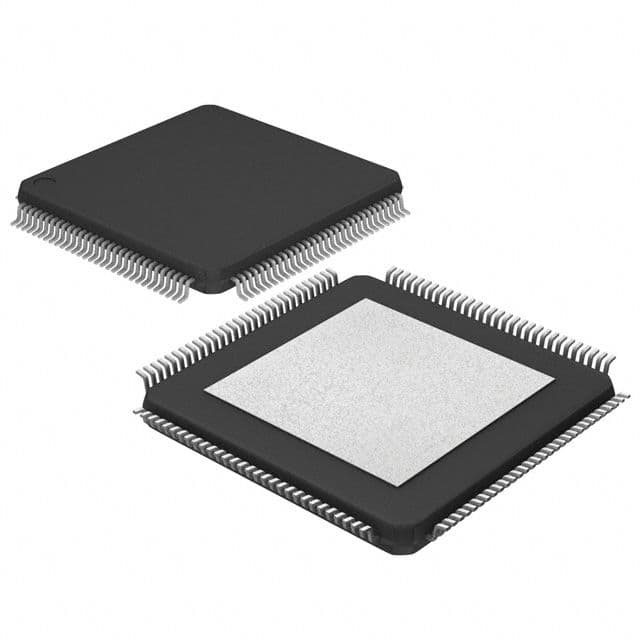

Product Images
