Octal D-Type edge-triggered flip-flops with 3-state outputs, designed for surface mounting in a 20-TSSOP package. Features positive edge clock triggering, an 8-bit data bus, and a maximum operating frequency of 110MHz. Offers 3-state outputs with ±24mA high/low level output current and a 5V operating supply voltage. This CMOS technology component boasts a 7ns propagation delay and operates across a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency110MHz
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT574PWR technical specifications.
General
| Package/Case | TSSOP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 110MHz |
| High Level Output Current | -24mA |
| Input Capacitance | 4.5pF |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 24mA |
| Max Frequency | 85MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Input Lines | 3 |
| Number of Output Lines | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Current | 50mA |
| Output Type | 3-STATE |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 7ns |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74ACT |
| Technology | CMOS |
| Turn-On Delay Time | 11ns |
| Weight | 0.002716oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ACT574PWR Datasheet
Download the complete datasheet for Texas Instruments SN74ACT574PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

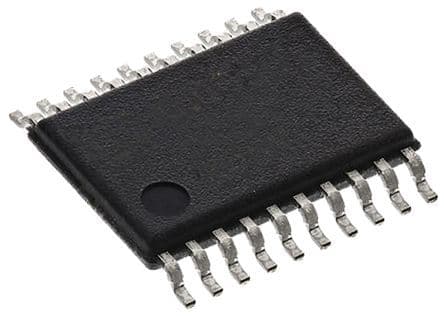

Product Images
