1024 x 18 synchronous FIFO memory, offering 18Kb density and 18-bit data bus width. Features a maximum operating frequency of 50MHz with a 13ns access time. This unidirectional FIFO supports programmable flags and operates from a 4.5V to 5.5V supply voltage. Packaged in a 68-PLCC for surface mounting, it is RoHS compliant and designed for operation between 0°C and 70°C.
Frequency50MHz
PackagePLCC
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT7881-20FN technical specifications.
General
Access Time
13ns
Access Time-Max
13ns
Bus Directional
Unidirectional
Package/Case
PLCC
Data Bus Width
18b
Density
18Kb
Direction
Unidirectional
Frequency
50MHz
FWFT Support
No
Lead Free
Lead Free
Max Frequency
50MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
1KX18
Package Quantity
18
Packaging
Rail/Tube
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
No
RoHS Compliant
Yes
Series
74ACT
Supply Current
400uA
Sync/Async
Synchronous
Word Size
18b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT7881-20FN Datasheet
Download the complete datasheet for Texas Instruments SN74ACT7881-20FN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

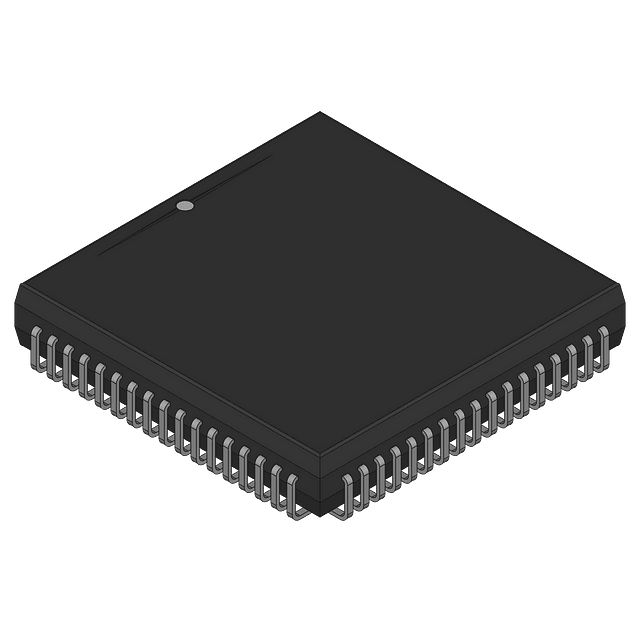

Product Images
