Single 3-to-8 CMOS decoder/demultiplexer IC, featuring 8 output lines and 3 input lines. Operates with a supply voltage range of 2V to 5.5V, offering a bandwidth of 110MHz and a propagation delay of 13ns. This surface mount component is housed in a 16-pin TSSOP package, with independent circuits and inverting polarity. It supports low and high level output currents of 8mA and -8mA respectively, and operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageTSSOP
MountingSurface Mount
PolarityInverting
Power600mW
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC138PWR technical specifications.
General
Bandwidth
110MHz
Package/Case
TSSOP
High Level Output Current
-8mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Demultiplexer, Decoder
Low Level Output Current
8mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Input Lines
3
Number of Inputs
3
Number of Output Lines
8
Number of Outputs
8
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Inverting
Power Dissipation
600mW
Propagation Delay
13ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AHC
Supply Type
Single
Technology
CMOS
Thickness
1mm
Turn-On Delay Time
18.5ns
Weight
0.002183oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC138PWR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC138PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

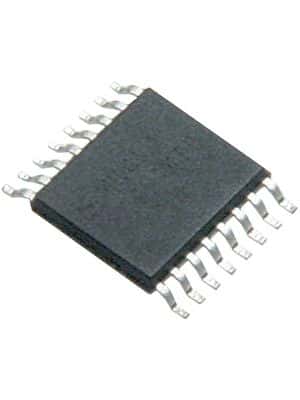

Product Images
