CMOS multiplexer, 1-element, 8-input, 4-channel, 2-bit selection, with a 110MHz bandwidth and 8.4ns propagation delay. Features include a 5.5V max supply voltage, 8mA high/low output current, and operation from -40°C to 125°C. This surface mount device is housed in a 16-pin SOIC package and is RoHS compliant.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Power1.7W
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC157D technical specifications.
General
Bandwidth
110MHz
Package/Case
SOIC
High Level Output Current
8mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Multiplexer
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
2
Number of Channels
4
Number of Circuits
4
Number of Input Lines
2
Number of Inputs
8
Number of Output Lines
1
Number of Outputs
4
Package Quantity
40
Packaging
Rail/Tube
Polarity
Non-Inverting
Power Dissipation
1.7W
Propagation Delay
8.4ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AHC
Supply Type
Single
Throw Configuration
DPST
Weight
0.004998oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC157D Datasheet
Download the complete datasheet for Texas Instruments SN74AHC157D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

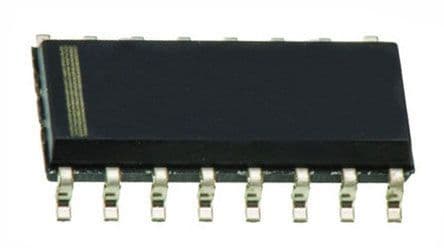

Product Images
