The SN74AHC4066DGVR is a 4-channel SPST non-inverting multiplexer from Texas Instruments, featuring a -3db bandwidth of 50MHz and a maximum operating temperature of 85°C. It operates within a supply voltage range of 2V to 5.5V and is RoHS compliant. The device is packaged in a TFSOP package and is suitable for surface mount applications.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC4066DGVR technical specifications.
General
| -3db Bandwidth | 50MHz |
| Bandwidth | 50MHz |
| Package/Case | TFSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| On-State Resistance | 75R |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Polarity | Non-Inverting |
| Propagation Delay | 4ns |
| RoHS Compliant | Yes |
| Series | 74AHC |
| Supply Type | Single |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AHC4066DGVR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC4066DGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

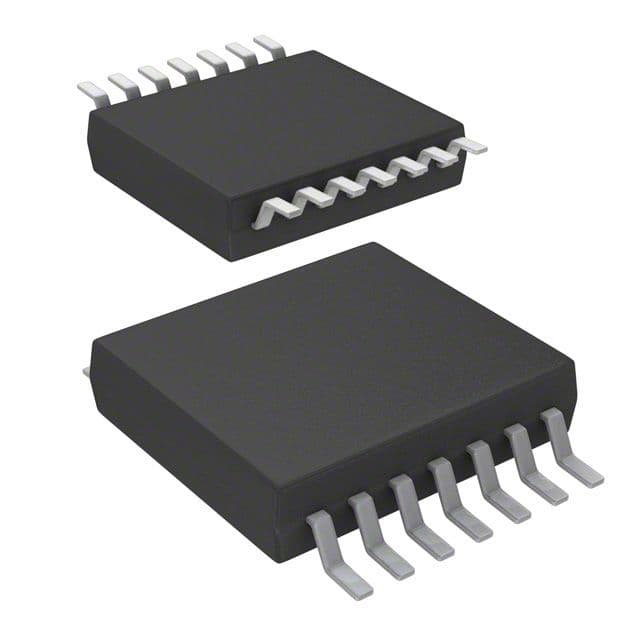

Product Images
