Octal transparent D-type latches with 3-state outputs, featuring 8 independent circuits. This CMOS logic IC operates with a positive edge clock trigger and supports a wide temperature range of -40°C to 125°C. It offers a maximum supply voltage of 5.5V and a minimum of 2V, with output currents of -8mA (high) and 8mA (low). The component is surface mountable in a 20-SOIC package and is RoHS compliant.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC573DWR technical specifications.
General
Package/Case
SOIC
Clock Edge Trigger Type
Positive Edge
High Level Output Current
-8mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
D-Type, Latch
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
3
Number of Output Lines
1
Number of Outputs
8
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
10ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
1ns
Weight
0.017662oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC573DWR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC573DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

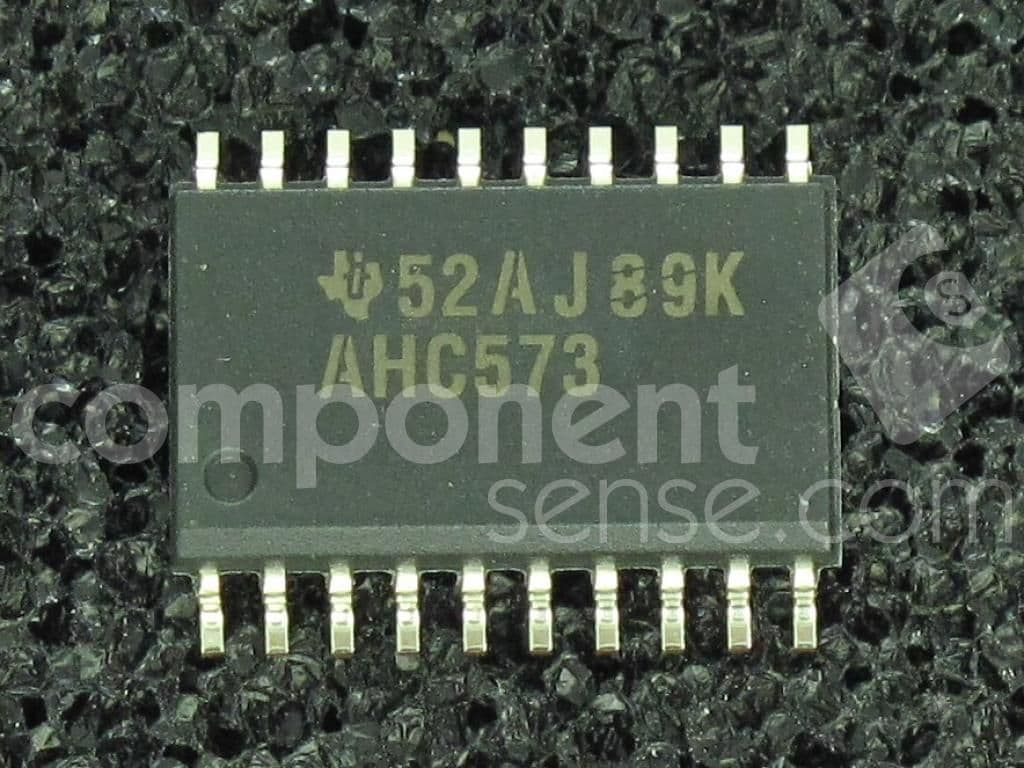

Product Images
