8-bit unidirectional shift register with 3-state output, operating from 2V to 5.5V. Features a 10.2ns propagation delay and 18.5ns turn-on delay, with a maximum operating temperature of 125°C. Packaged in a 16-TSSOP (5.1mm x 4.5mm x 1.05mm) for surface mounting. This CMOS logic IC is RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC595PW technical specifications.
General
Package/Case
TSSOP
Direction
Unidirectional
Height
1.05mm
Lead Free
Lead Free
Length
5.1mm
Logic Function
Shift Register
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
1
Number of Elements
1
Number of Input Lines
1
Number of Output Lines
9
Output Type
3-STATE
Package Quantity
90
Packaging
Rail/Tube
Propagation Delay
10.2ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
18.5ns
Weight
0.002183oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC595PW Datasheet
Download the complete datasheet for Texas Instruments SN74AHC595PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

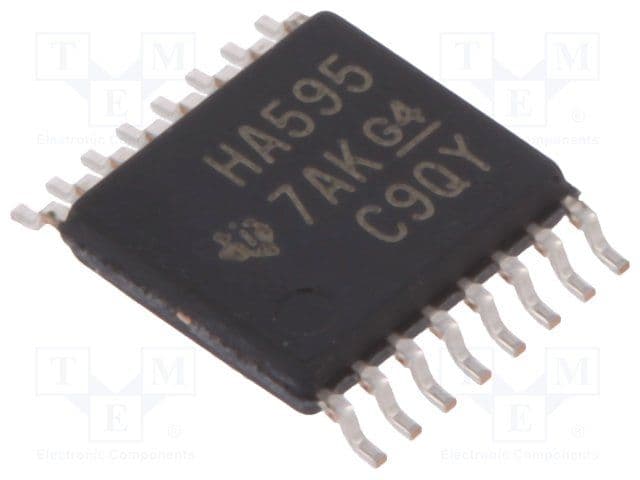

Product Images
