Quadruple bus buffer gates with 3-state outputs, featuring 4 non-inverting buffer elements. This CMOS logic IC operates from a 4.5V to 5.5V supply, with a typical operating voltage of 5V. It offers a 7.5ns propagation delay and supports output currents of 8mA (low) and -8mA (high). Packaged in SO for surface mounting, this RoHS compliant component is designed for operation between -40°C and 125°C.
PackageSO
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AHCT125NSR technical specifications.
General
| Package/Case | SO |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 7.5ns |
| Quiescent Current | 2uA |
| RoHS Compliant | Yes |
| Series | 74AHCT |
| Technology | CMOS |
| Turn-On Delay Time | 10ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AHCT125NSR Datasheet
Download the complete datasheet for Texas Instruments SN74AHCT125NSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

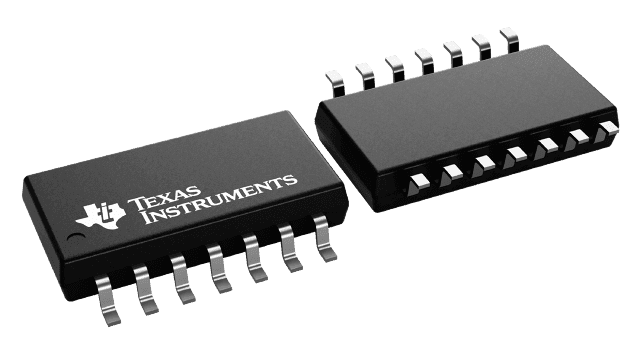

Product Images
