Single 2-input positive-AND gate, CMOS technology, operating supply voltage 5V (4.5V to 5.5V range). Features a 7.9ns propagation delay and 8mA output current. Packaged in a compact SOT-23 surface mount case with dimensions of 2.9mm (L) x 1.6mm (W) x 1.15mm (H). Operates across a temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHCT1G08DBVR technical specifications.
General
Package/Case
SOT-23
Height
1.15mm
High Level Output Current
-8mA
Lead Free
Lead Free
Length
2.9mm
Logic Function
AND GATE
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
8mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
5V
Output Current
8mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
7.9ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74AHCT
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
7.9ns
Weight
0.000557oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHCT1G08DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74AHCT1G08DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

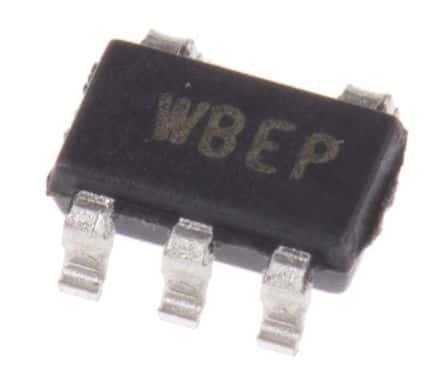

Product Images
