Single Schmitt-trigger inverter, CMOS technology, operating from 4.5V to 5.5V with a nominal 5V supply. Features include a single input and output, 8ns propagation delay, and 25mA output current capability. This surface-mount component is housed in an SC package, operates across a -40°C to 125°C temperature range, and is RoHS compliant.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHCT1G14DCKR technical specifications.
General
| Package/Case | SC |
| High Level Output Current | -8mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverter, Schmitt Trigger |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 1uA |
| Number of Bits | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 25mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 8ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74AHCT |
| Technology | CMOS |
| Thickness | 900um |
| Turn-On Delay Time | 9ns |
| Weight | 8.8E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AHCT1G14DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74AHCT1G14DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

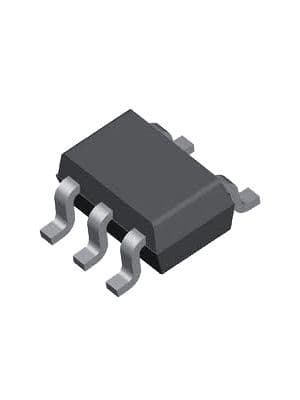

Product Images
