Single 2-Input Exclusive-OR Gate, CMOS technology, operating from 4.5V to 5.5V with a nominal 5V supply. Features a 9ns propagation delay and 7.9ns turn-on delay. Offers 8mA low-level output current and -8mA high-level output current. Packaged in a 3-pin SOT-23 surface mount with dimensions of 3.05mm length, 1.75mm width, and 1.3mm height. Operates across a temperature range of -40°C to 125°C and is RoHS compliant.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHCT1G86DBVR technical specifications.
General
Package/Case
SOT-23
Height
1.3mm
High Level Output Current
-8mA
Lead Free
Lead Free
Length
3.05mm
Logic Function
XOR GATE, OR GATE
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
5V
Output Current
8A
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
9ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74AHCT
Technology
CMOS
Thickness
1.2mm
Turn-On Delay Time
7.9ns
Weight
0.000557oz
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHCT1G86DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74AHCT1G86DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

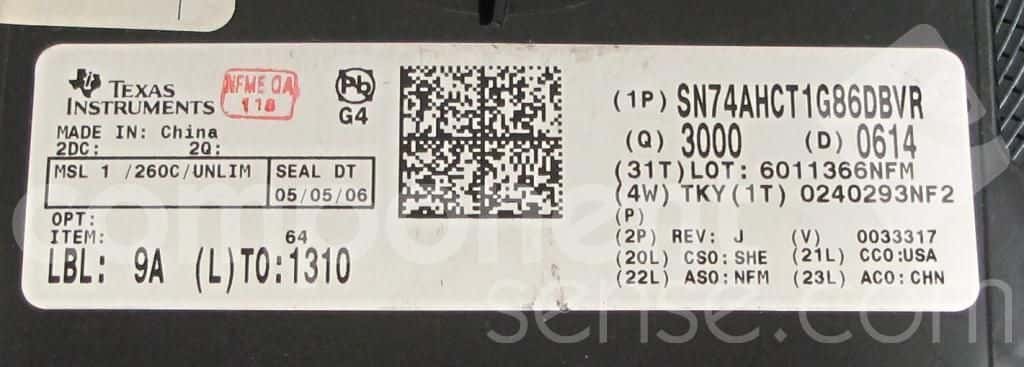

Product Images
